Courtyard Series 1910 - The English Tudor - Standard Design

Plan Number: CYS-1910.O2

English Tudor Std. Site Plan
Click here for larger view

Design Comments

Although, designed using an open plan concept the home conveys a sense of formality. One major element in the design is the Grand Hallway that divides the more public spaces, i.e. Kitchen/Dining/Great Room, from the bedrooms and visually links the front and rear yards by the use of french doors at either end of the hall.

Each bedroom has its own separate hallway. The Master Bedroom has the more typical setting with direct access to a luxury bathroom suite. The Secondary Bedroom, can serve as a second master bedroom, a guest bedroom or a child's bedroom and is in close proximity to an upgraded shared bathroom.

Another added feature is the generous Laundry/Mud Room. In addition to a large laundry area the room also includes a separate table height countertop with a sitting area for doing paperwork or for the arts and crafts enthusiast.

The floor plan design makes a strong connection to outdoor living. This is accomplished by the use of large areas of glass in the Great Room and a large folding glass door located in the Dining Room. The Great Room and Dining Room are oriented to take advantage of the side/rear yard that can offer plentiful landscaping options to meet anyone's lifestyle. The front porch is perfect for those sunny summer days to lounge about and share a lemonade with neighbors.

Basics


Levels 1
Bedrooms 2
Baths 2
Garage Stalls 2


Square Footage


Living Area 1,910 SQ. FT.
With Basement 3,820 SQ. FT.


Dimensions


Width 76'-0"
Depth 68'-0"
Height 17'-6"


Room Sizes


Great Room 15'-0"x12'-9"
Dining 13'-0"x10'-0"
Master Bedroom 13'-0"x13'-8"
Laundry/Mud Room 13'-6"x9'-0"
Kitchen 15'-0"x9'-0"


Ceiling Height


Standard 9'-0"
Great Room 12'-0"
Dining 12'-0"
Master Bath 11'-0"
Grand Hallway 10'-0"

Features

  • Open plan design
  • Single level living
  • Front entry accessible ramp
  • Front Porch
  • Dining open to side yard
  • Great Room fireplace
  • Large storage closet
  • Attached two car garage

Option Packages Included

In addition to the standard design package you will receive plans for the Flex Room Option. This all inclusive package allows you to build the Flex Room immediately or in the future. Should you never add the room and sell your home you can use the room plan as a selling tool (Note: home should be sited within property setbacks to include area for room addition).

English Tudor Standard Site Plan Front English Tudor Std. Site Plan Side

With Flex Room

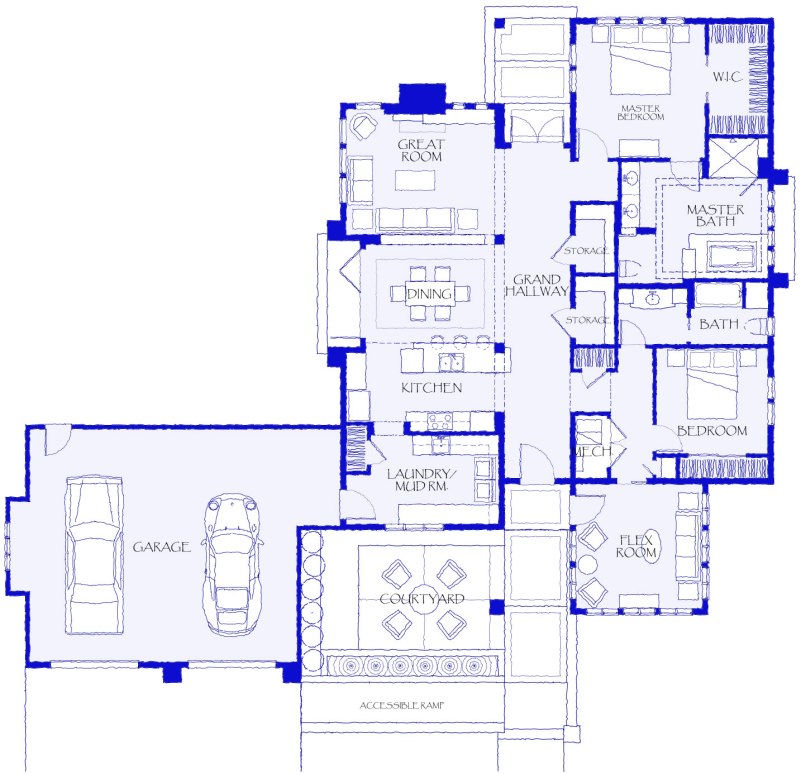

English Tudor Flex Site Plan
Click here for larger view

Design Comments

With the addition of the Flex Room option a front courtyard becomes part of the house design. The Flex Room has a french door that provides direct access to the courtyard.

The Flex Room has a variety of ways to use the space including an Office that can be accessed without entering the home, a Media Room, or as a Sunroom with direct access to the courtyard. Because of its close proximity to the secondary bedroom the space could be combined with the bedroom and become part of an in-law suite.

Square Footage


Living Area 1,910 SQ. FT.
Flex Room 190 SQ. FT.
Total Living Area 2,100 SQ. FT.
With Basement 4,010 SQ. FT.


Dimensions


Width 76'-0"
Depth 68'-0"
Height 17'-6"


Room Sizes


Great Room 15'-0"x12'-9"
Dining 13'-0"x10'-0"
Master Bedroom 13'-0"x13'-8"
Kitchen 15'-0"x9'-0"
Laundry/Mud Room 13'-6"x9'-0"
Flex Room 12'-10"x12'-9"


Ceiling Height


Standard 9'-0"
Great Room 12'-0"
Dining 12'-0"
Master Bath 11'-0"
Grand Hallway 10'-0"
Flex Room 9'-0"
English Tudor Flex Site Plan Front

Pricing

Please read the LICENSE AGREEMENT as you proceed with purchase. By purchasing plans you are agreeing to the terms of the License Agreement.

PDF Construction Set: $2,000.00
AutoCAD Construction Set: $2,750.00

Available options:

Foundation Type: Slab-on-grade / Full basement
Reverse Reading: Yes / No

Call us at (612) 360-7449 or email us to order
